YTD32系列四柱式液壓機
來源：網站管理員 點擊數：次 更新時間：2021-06-26
產品說明：
本系列液壓機具有繼電器控制和PLC控制兩種電器控制系統,有調整、手動及半自動三種操作方式,可實現定壓和定程兩種工藝方式。定壓成型時,在壓制后有保壓延時及自動回程動作。工作臺中間裝有頂出裝置,除頂出制品外,尚可作為液壓用于反拉伸制件的成型工藝，其工作壓力與行程,可根據工藝需要,在規定范圍內調整。
This series of hydraulic machines have two kinds of electrical control systems, which are relay control and PLC control.
There are three operating modes of adjustment, manual and semi automatic, which can realize the two kinds of process
methods of constant pressure and fixed range. When the pressure is formed, there is pressure keeping delay and automatic return action after pressing. There is a top out device in the middle of the worktable. Besides the top out products,it can be used as a hydraulic molding process for reverse drawing parts. The working pressure and stroke can be adjusted in the specified range according to the needs of the process.

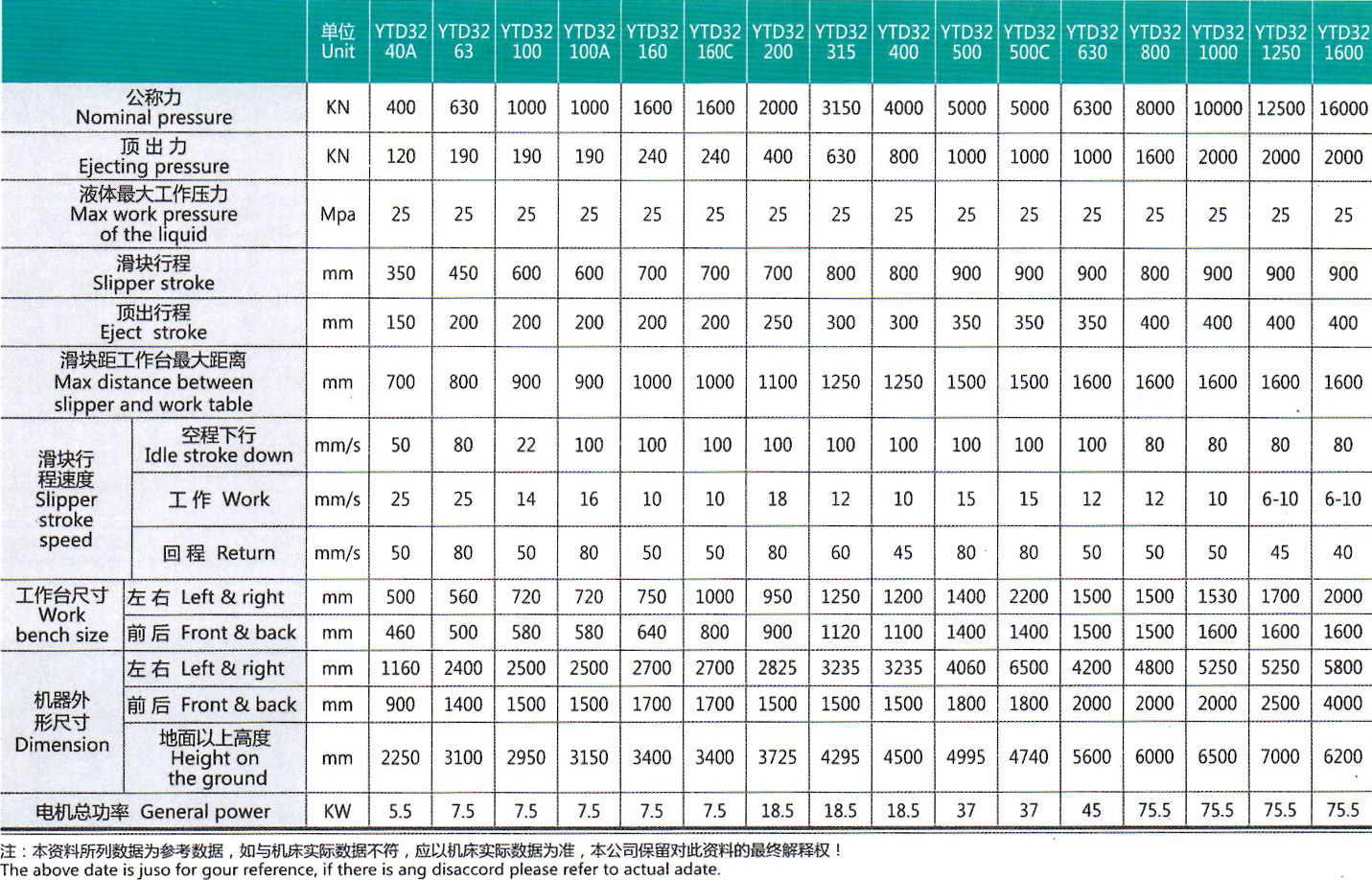

技術參數表：
